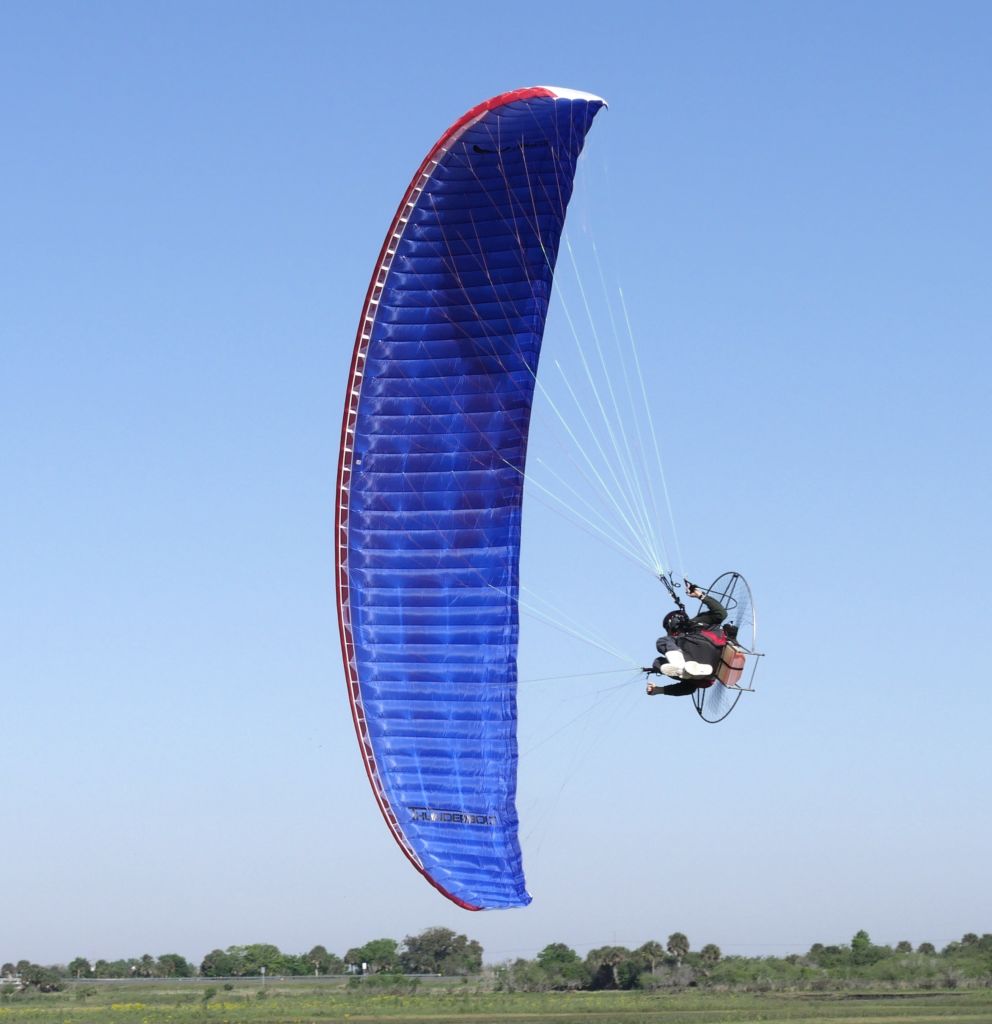

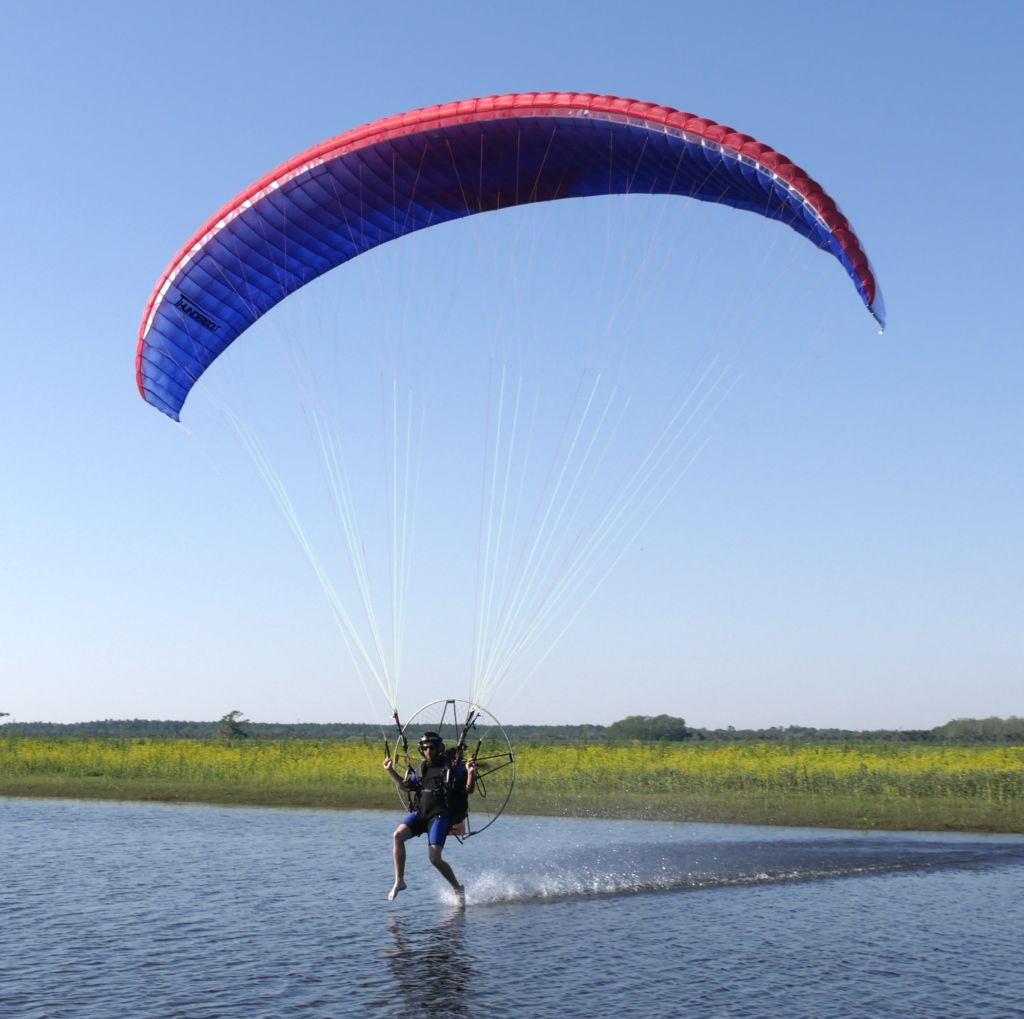

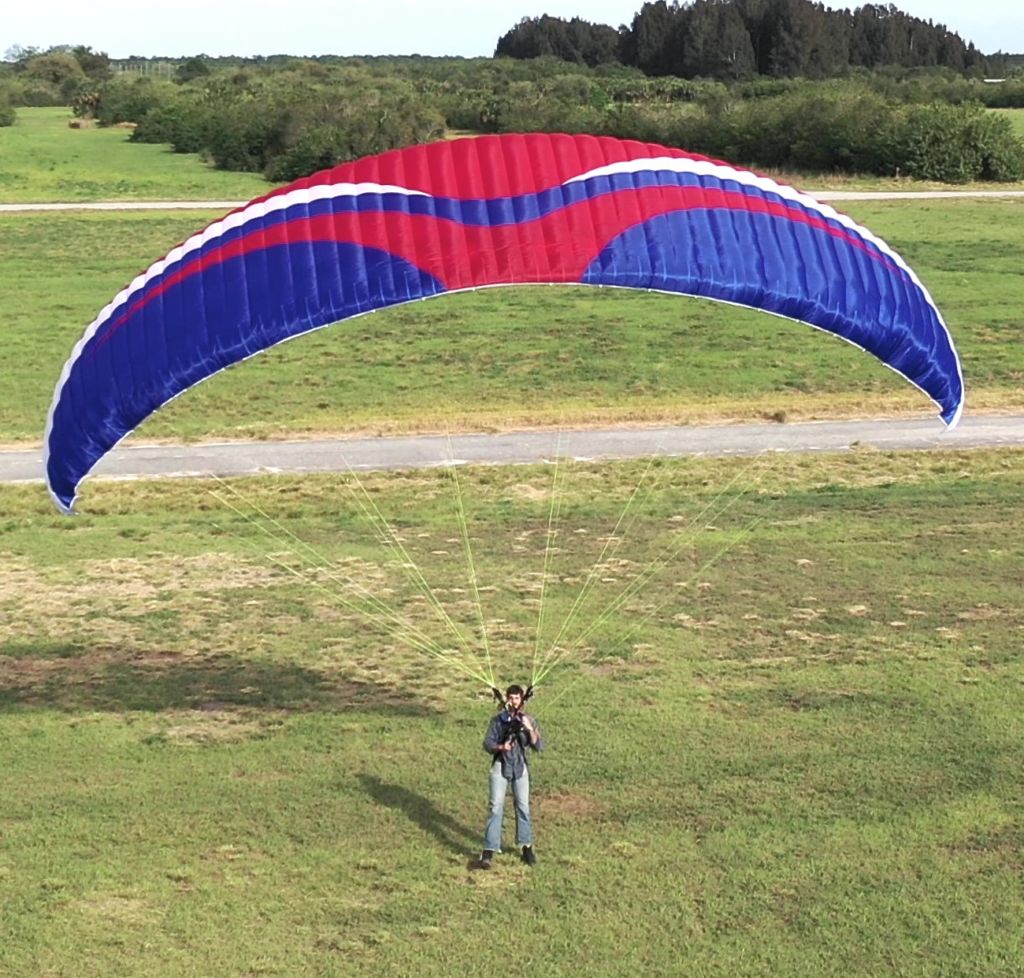

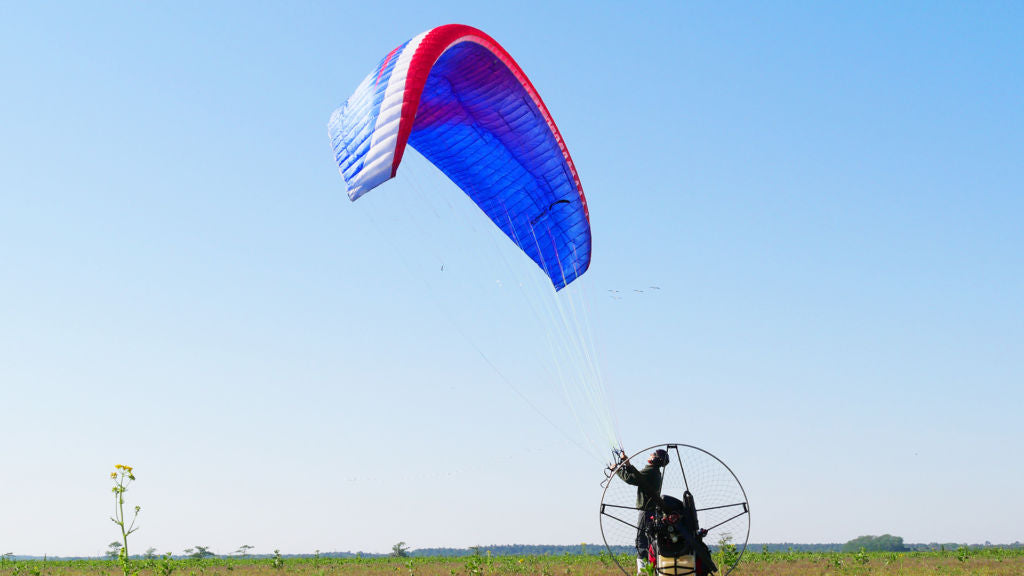

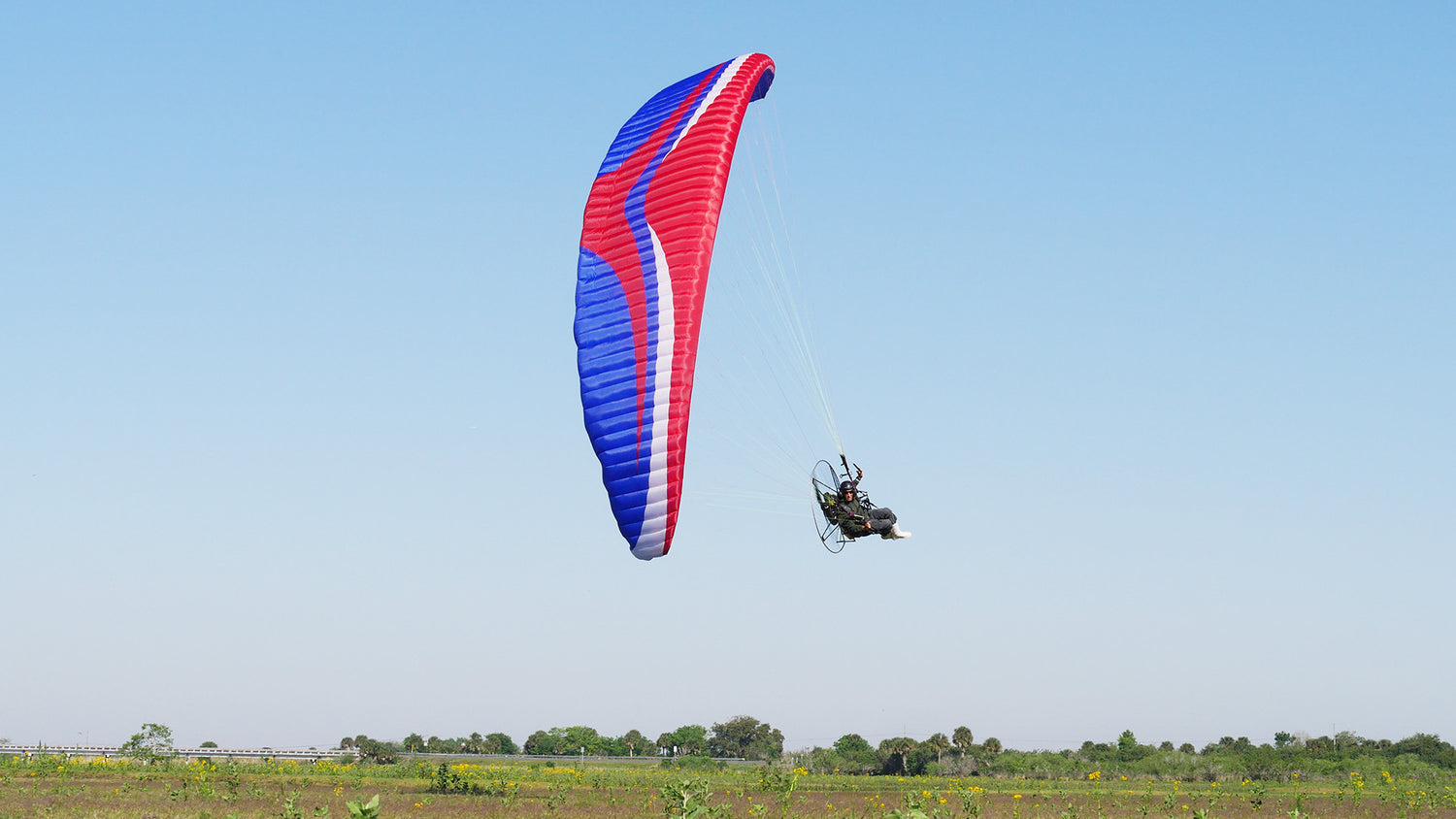

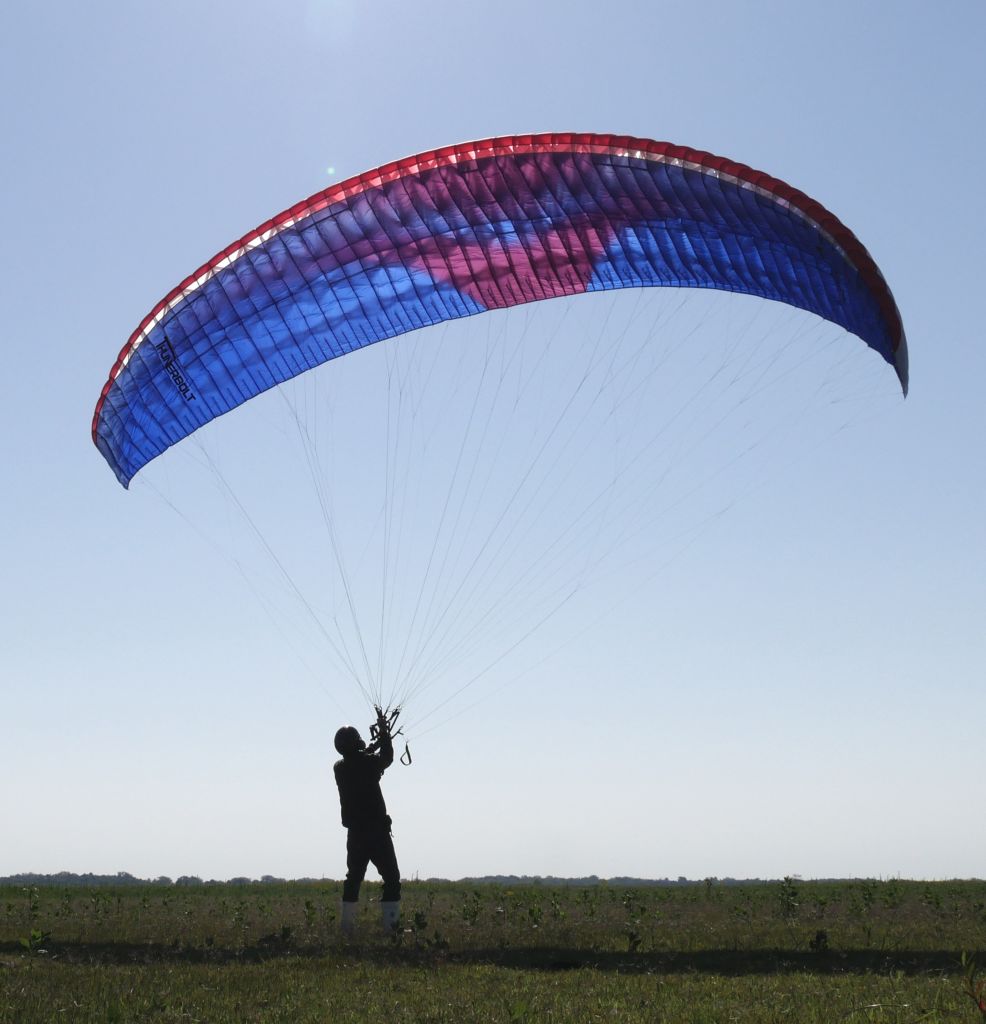

Thunderbolt Glider
The THUNDERBOLT is an ultra versatile reflex paramotor wing for intermediate to advanced pilots. Fast, stable, and agile as possible while maintaining passive and active safety for advancing pilots.
Details and Size
XXS |
XS |
S |
M |
L |
XL |
|
|---|---|---|---|---|---|---|
| Flat area (m²) | 17,1 | 18,4 | 19,5 | 21,6 | 23,8 | 26,1 |
| Flat Aspect Ratio | 5,52 | 5,52 | 5,52 | 5,52 | 5,52 | 5,52 |
| Cells | 53 | 53 | 53 | 53 | 53 | 53 |
| Projected Aspect Ratio | 4,23 | 4,23 | 4,23 | 4,23 | 4,23 | 4,23 |
| Glider weight (kg) | 3,9 | 4,1 | 4,3 | 4,8 | 5,3 | 5,9 |
| Min speed (km/h) | 24-26 | 24-26 | 24-26 | 24-26 | 24-26 | 24-26 |
| Max speed (km/h) | 70±5 | 70±5 | 70±5 | 70±5 | 70±5 | 70±5 |
| Recommended pilot weight (kg) | 40-70 | 50-80 | 60-90 | 75-110 | 95-130 | 115-150 |
| Registration/Certification | DGAC 50-90 kg | DGAC 60-100 kg | DGAC 70-110 kg | DGAC 85-130 kg | DGAC 105-150 kg | DGAC 125-170 kg |
Technical Specifications
Details |
|---|
| 53 cells, 8 of them closed |
| Use of 29 gr/m² Nylon 6.6 light fabric on top and bottom surface of the canopy for a super easy inflation |
| Mini-Ribs (Profiles between the cells of the trailing edge, which improve performance and handling) |
| Crossed flexible nylon battens reinforcements |
| Advanced air foil design to boost and keep stable internal pressure |
| Advanced REFLEX profile for stability |
| Trimmers for high speed use and negative trimmers for free-flight use. |
| “Power Attack” system: Opens trimmers automatically during use of the speed bar for a fast acceleration |
| 2D steering system, easy to maneuver, with a light need of brake pressure |
Materials Specifications
| Leading edge fabric | |
| 40 gr/m² – 30D Nylon 6.6 high tenacity with PU+Silicone coating | |
| Top/Bottom fabrics | |
| 29 gr/m² – 20D Nylon 6.6 high tenacity with PU+Silicone coating | |
| Profiles | |
| Pro-Nyl 36 gr/m² High Tenacity Nylon Rip-Stop hard finish | |
| Lines | |
| Liros® Dyneema 0,76 mm – 45,0 daN Liros® Dyneema 1,05 mm – 121,4 daN Liros® Dyneema 1,20 mm – 142,9 daN Liros® Dyneema 1,58 mm – 182,3 daN |
|
| Risers | 19 x 2,0 mm 1600kg |
| Pulleys | ISR / PL14 |
