Cross Glider

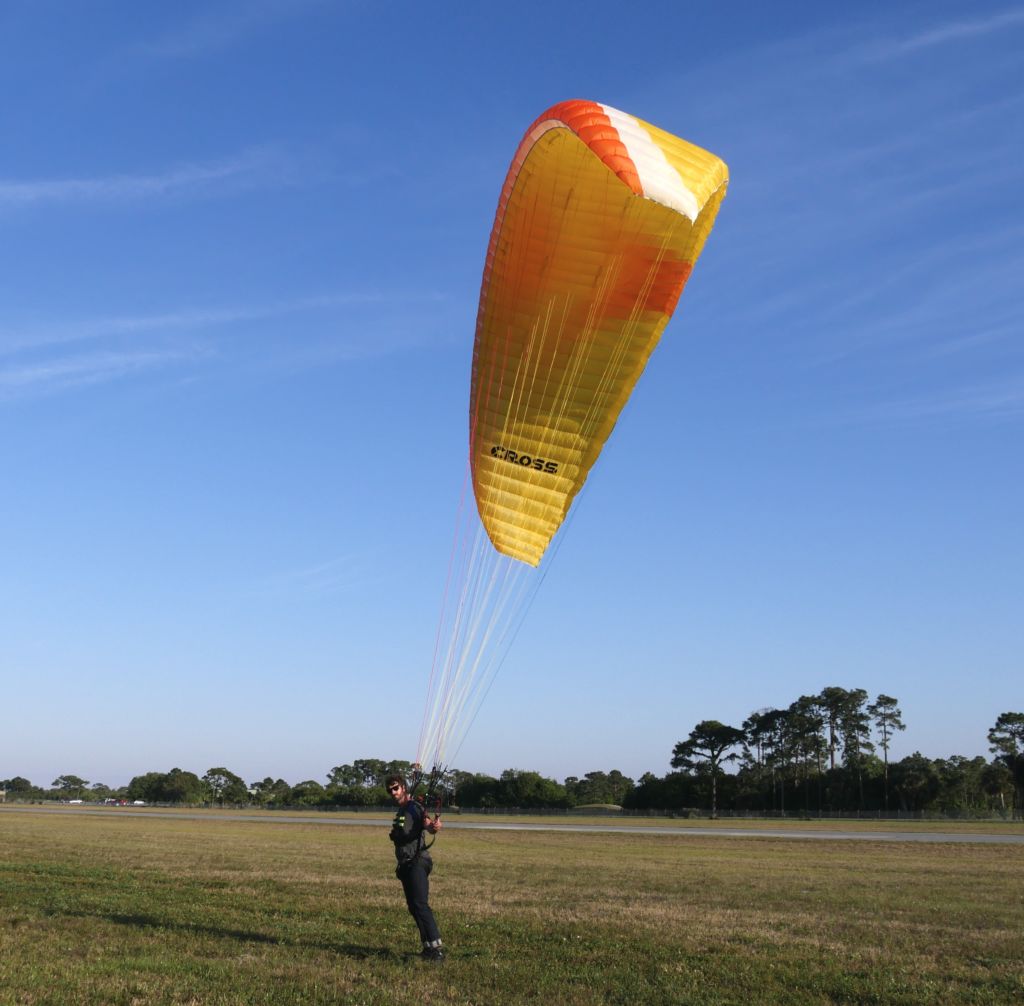

Kiting is one of the most important aspects of paramotor training.
The CROSS is a fast and stable glider designed to be used by beginner pilots after their school training and recreational cross-country pilots. This innovative design utilizes light weight fabrics making the CROSS one of the easiest PPG glider to inflate and launch in zero wind condition.
The idea was to create a safe, fast reflex glider that is fun to fly, but also usable as a paragliding wing. The CROSS is equipped with dual trimmer system. Long trimmers for the fast flight mode, as well as a second set of negative trimmers, to reduce the REFLEX profile on the shape and use it as an efficient paraglider.
Equipped with 2D steering, the CROSS is soft and easy to maneuver, with a minimal need of brake pressure.
Details and Size
|
|
XXS |
XS |
S |
M |
L |
|---|---|---|---|---|---|
| Flat area (m²) | 19,6 | 21,4 | 22,9 | 24,7 | 26,4 |
| Flat Aspect Ratio | 5,18 | 5,18 | 5,18 | 5,18 | 5,18 |
| Cells | 42 | 42 | 42 | 42 | 42 |
| Projected Aspect Ratio | 4,23 | 4,23 | 4,23 | 4,23 | 4,23 |
| Glider weight (kg) | 3,9 | 4,3 | 4,7 | 5,1 | 5,5 |
| Min speed (km/h) | 24-26 | 24-26 | 24-26 | 24-26 | 24-26 |
| Max speed (km/h) | 65±5 | 65±5 | 65±5 | 65±5 | 65±5 |
| Recommended pilot weight (kg) | 50-80 | 65-95 | 80-110 | 95-125 | 110-140 |
| Registration/Certification | DGAC Pending | DGAC Pending | DGAC Pending |
Technical Specifications
Details |
|---|
| 39 cells, 6 of them closed |
| Use of 29 gr/m² Nylon 6.6 light fabric on top and bottom surface of the canopy for a super easy inflation |
| Mini-Ribs (Profiles between the cells of the trailing edge, which improve performance and handling) |
| Flexible nylon battens reinforcements |
| Advanced air foil design to boost and keep stable internal pressure |
| Trimmers for acceleration |
| Split A risers |
Materials Specifications
| Leading edge fabric | |
| 40 gr/m² – 30D Nylon 6.6 high tenacity with PU+Silicone coating | |
| Top/Bottom fabrics | |
| 29 gr/m² – 20D Nylon 6.6 high tenacity with PU+Silicone coating | |
| Profiles | |
| Pro-Nyl 36 gr/m² High Tenacity Nylon Rip-Stop hard finish | |
| Lines | |
| Cousin Technora® 1,1 mm – 104,1 daN Cousin Technora® 1,5 mm – 139,3 daN Cousin Technora® 2,1 mm – 238,6 daN Cousin Technora® 2,5 mm – 382,0 daN |
|
| Reinforcements | 2,5 mm Nylontab (Profile front) |
| Risers | 19 x 2,0 mm 1600kg |
